Gillo GT 23in ILF riser

Gillo GT 23in ILF riser

$634.06 USD
$634.06 USD
Sale Sold out
Taxes included.
Special Order. Allow 2-3 weeks.
Left or Right Handed
Colour
Size

The next generation of Gillo risers is here!

Achieve a massive 30% poundage adjustment range with the unique Gillo GT limb pocket design.



  • Recurve & Bare Bow riser
  • ILF Limbs compatible

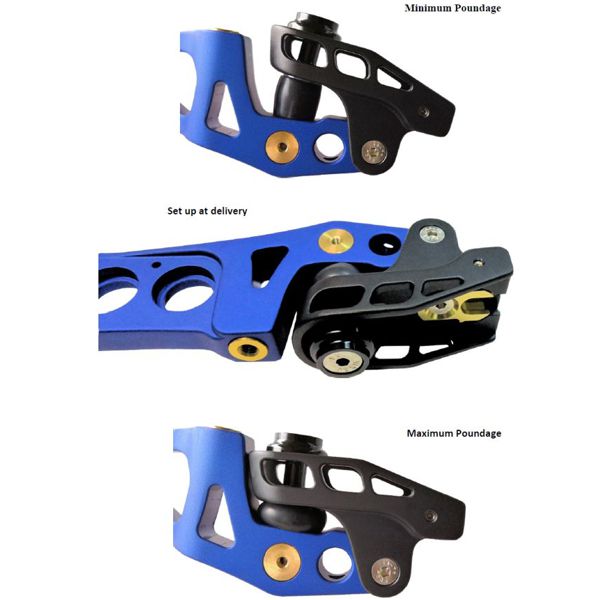

  • Floating limbs pockets allow over 30% poundage adjustment range
  • Integrated shock absorbers
  • 23in length, RH version
  • Body and Pockets machined from solid Aluminium bar
  • Matte sandblasted anodized surface
  • Aluminium 7075 Limbs alignment plates
  • Special round seats for optional balancing weights
  • Stainless steel limbs bolts assembled in AL 7075 black anodized bodies
  • Hard Wood, Root colour medium grip
  • 3 front stabs bushings, 1 back stabs bushings, all made by Stainless Steel Gold color Titanium Nitride coated
  • Front center stabilizer bushing 1mm off from axis for perfect balance
  • Compatible with all G1, GQ and GT grips
  • Approx. 1290g total weight
  • Packing includes long clicker plate, Manual with Warranty card, GRS-03 riser protection sleeve, 4 Allen wrenches, 2 bolt locking Brass grub screws



Dual Colour Options: (pocket/riser)

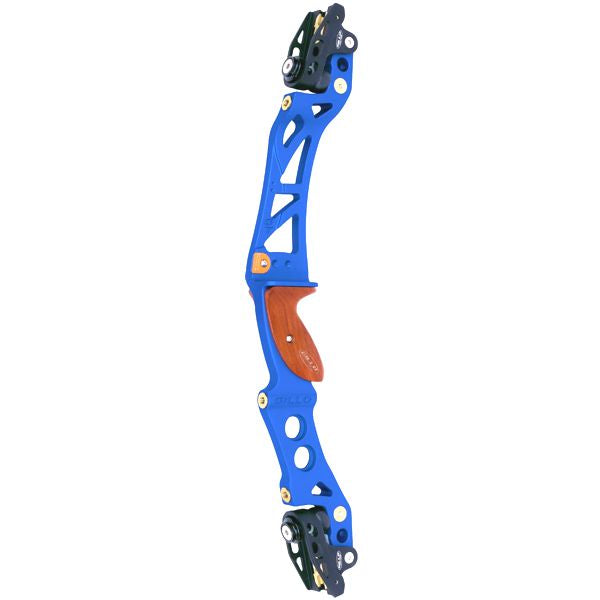

  • RH Black/Blue (KBL)

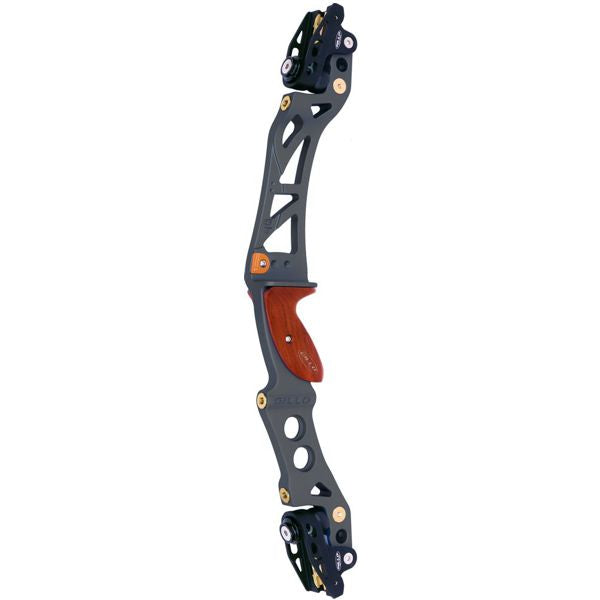

  • RH Black/Grey (KGY)

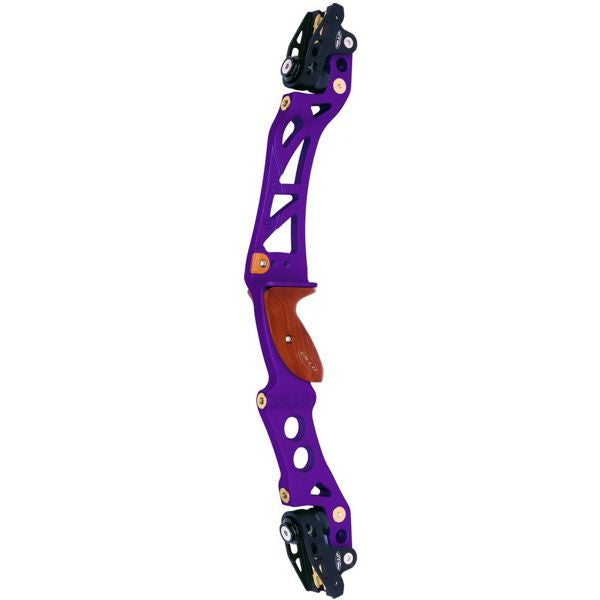

  • RH Black/Purple (KPR)

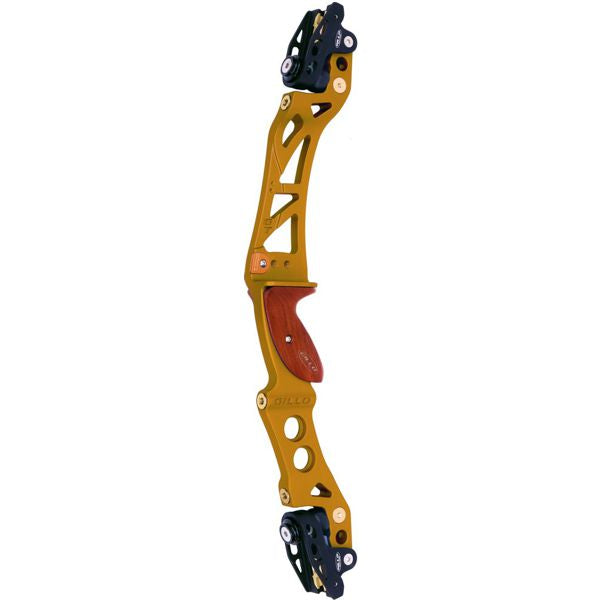

  • RH Black/Gold (KGO)

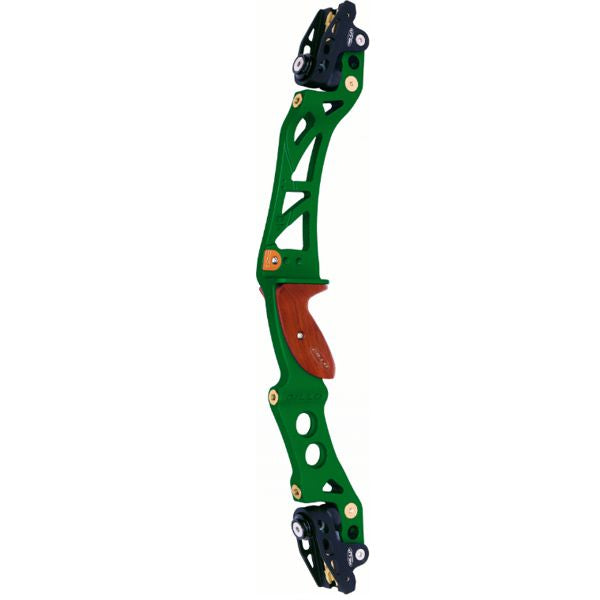

  • RH Black/Green (KGR)

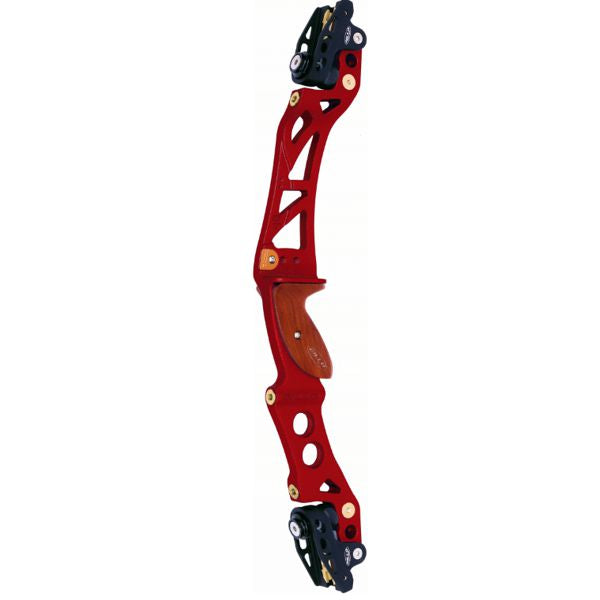

  • RH Black/Red (KRD)

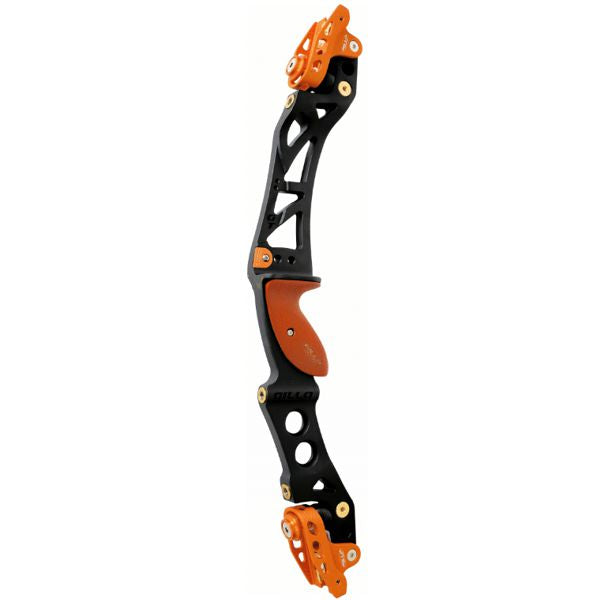

  • RH Gold/Black (OBK)



Optional accessories available:

  • G03-PI-01-AL-BK pair of ILF limbs pocket to transform riser to G03L-RSI-23 version
  • G05-DK2 2 steel disk heavy weights kit
  • G04-BW-03 The Hammers Barebow weights
  • Various Plugs to cover bottom weights holes, made by wood or plastic 3D printed in various colours
  • Various grips made by wood or plastic 3D printed in various colours



Hole Thread sizes:

  • Limbs Bolts: M8
  • Limbs Bolts side locking: 4 x M5
  • Limbs Pockets side locking: 4 x M6
  • Alignment plate inner locking: 2 x M6
  • Alignment plate side locking: 4 x M5
  • Front stabs: 3 x 5/16-24 UNF
  • Rear stabs: 1 x 5/16-24 UNF
  • Cushion plunger: 2 x 5/16-24 UNF
  • Clicker and Clicker plate: 3 x M4
  • Sight: 2 x 10-24
  • Grip: 2 x M4
