Gillo B-GRADE - GT 23in ILF riser
Gillo B-GRADE - GT 23in ILF riser
Impossible de charger la disponibilité du service de retrait
BIG DISCOUNTS - Gillo B-GRADE products are those with small cosmetic defects from final assembly and testing. All B-GRADE products are perfect for shooting and in most cases the cosmetic defects are not easily to spot. All items are held by the Gillo factory and are available on a first come, first served basis and include a full factory warranty with the exception of any cosmetic issues.
The next generation of Gillo risers is here!
Achieve a massive 30% poundage adjustment range with the unique Gillo GT limb pocket design.
- Recurve & Bare Bow riser
- ILF Limbs compatible
- Floating limbs pockets allow over 30% poundage adjustment range
- Integrated shock absorbers
- 23in length, RH version
- Body and Pockets machined from solid Aluminium bar
- Matte sandblasted anodized surface
- Aluminium 7075 Limbs alignment plates
- Special round seats for optional balancing weights
- Stainless steel limbs bolts assembled in AL 7075 black anodized bodies
- Hard Wood, Root colour medium grip
- 3 front stabs bushings, 1 back stabs bushings, all made by Stainless Steel Gold colour Titanium Nitride coated
- Front center stabilizer bushing 1mm off from axis for perfect balance
- Compatible with all G1, GQ and GT grips
- Approx. 1290g total weight
- Packing includes long clicker plate, Manual with Warranty card, GRS-03 riser protection sleeve, 4 Allen wrenches, 2 bolt locking Brass grub screws
Dual Colour Options:

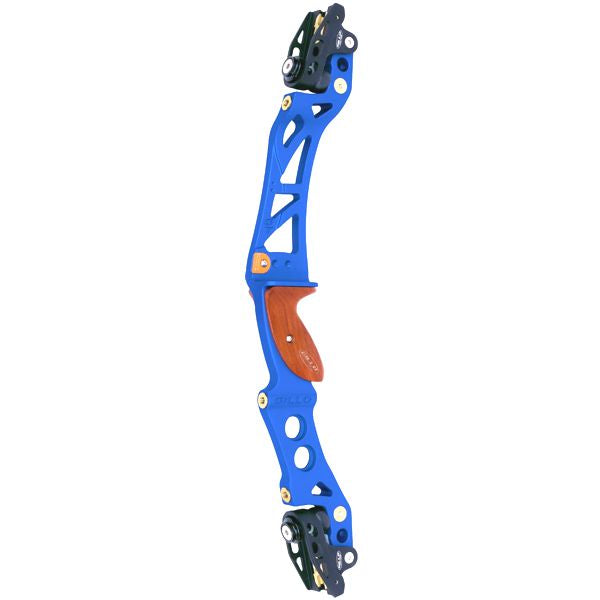

- RH Black/Blue (KBL)

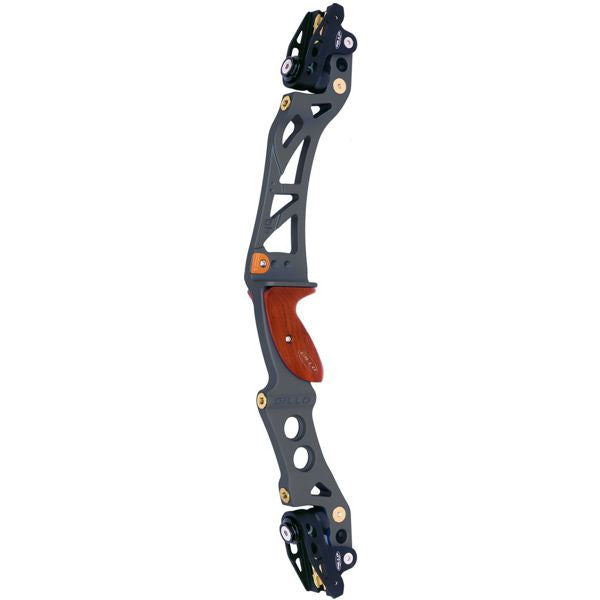

- RH Black/Grey (KGY)

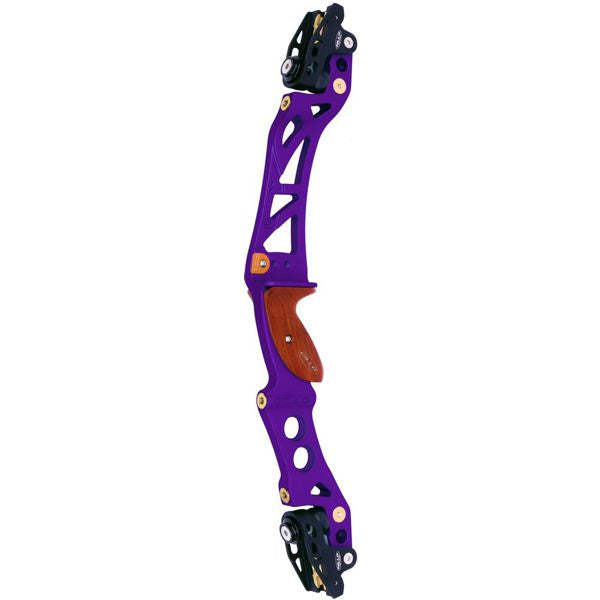

- RH Black/Purple (KPR)
- RH Black/Gold (KGO)
Optional accessories available:
- G03-PI-01-AL-BK pair of ILF limbs pocket to transform riser to G03L-RSI-23 version
- G05-DK2 2 steel disk heavy weights kit
- G04-BW-03 The Hammers Barebow weights
- Various Plugs to cover bottom weights holes, made by wood or plastic 3D printed in various colours
- Various grips made by wood or plastic 3D printed in various colours
Hole Thread sizes:
- Limbs Bolts: M8
- Limbs Bolts side locking: 4 x M5
- Limbs Pockets side locking: 4 x M6
- Alignment plate inner locking: 2 x M6
- Alignment plate side locking: 4 x M5
- Front stabs: 3 x 5/16-24 UNF
- Rear stabs: 1 x 5/16-24 UNF
- Cushion plunger: 2 x 5/16-24 UNF
- Clicker and Clicker plate: 3 x M4
- Sight: 2 x 10-24
- Grip: 2 x M4
